How to install a dimmer

After our lovely bedroom chandelier went up, I realized that it was sort of like looking into the midday sun.  Even though I only used 40 watt bulbs, it was quite bright.  I knew I wanted the capability of blinding light for all my 'where is that damn slipper' moments, but I also wanted to dim the lights for other reasons.  No, I will not elaborate.  Sooooo, while Shaun was taking a weekend trip to IL last Saturday, I decided to get all DIY-crazy and install a dimmer myself.  IT'S SO EASY YOU MIGHT SLAP YOURSELF.  Here's what I did:

Purchase a dimmer.  I got a regular 'toggler' style, because I didn't want to replace our new wallplate/switchplate cover.

TURN OFF POWER.  Remove pretty wallplate cover (or buy new pretty wallplate cover!) and make a note to touch up paint around door trim.

Unscrew crusty switch with years of nail fungus imbedded in the 'OFF' and 'ON' letters.

Notice that you painted around the original (ugly) wallplate cover and chuckle to yourself.

Unwrap electrical tape, if any.

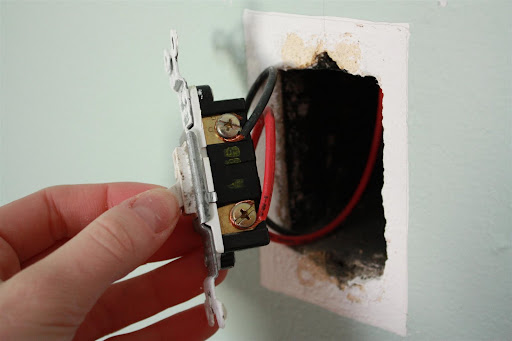

Notice how your switch is attached to the wires, take a picture if you won't remember.  Or if you want to document the process on your blog.  Either way.

My switch and electrical box were very simple to figure out, I had a red wire on the bottom, and a black wire on top.  Nothing else going on whatsoever.  Unscrew the wires.

Laugh at how funny the wires look just hanging out there.  I was alone on a Saturday, I was easily entertained!

Follow the directions on your dimmer for where the wires should go.  You can either insert the wires into the dimmer, or wrap the wires around screws.  I had copper wires wrapped around screws on the old switch, so that is how it was recommended to attach the new one.  This part is tricky, it took me a few tries to make it work because I hadn't wrapped them tight enough.  Use a needlenose pliers or other tool if necessary to get them wound tightly and then tighten the screw.  I put the black wire on the left and the red wire on the right side of the dimmer, following the instructions.  Tighten screws fully.

Turn on the power to test your skills!  If the switch works, turn the switch to 'OFF' and screw the dimmer to the electrical box the same way the old switch was attached.  If not, yell profanities, throw a screwdriver on the bed, stomp around, and try to get a better connection around the screws.  Not saying I actually DID any of those things...

Once you've got the light working, you can put your lovely wallplate cover back on.  YAY!

Now stand around the light switch playing with the dimmer function for at least 5 minutes.  The switch needs to be warmed up, right?  Also, don't tell hubby that you installed a dimmer and see if he thinks you changed out the bulbs or is going blind!

Details:
Our wallplate covers throughout the house are available at Home Depot, however Menards has them for only $4 - $5, so I got them all there instead.

The dimmer I purchased is for either a single pole (single switch) or a 3-way (haha) switch.  I could've just gotten a single pole dimmer, but the three-way one was on sale for $2 less than the (normally cheaper) single one, so that's the one I took home for $13.  Just be aware which one you are buying!

As an alternative to the toggle-style dimmers, you can also get more pricey touch-sensor ones like this:


Or, wider sliding switches like this:

However, if they don't already come with wallplate covers, both of these options will require new ones.  So, have I inspired you to 'dim your lights?'
